HCeasyFit

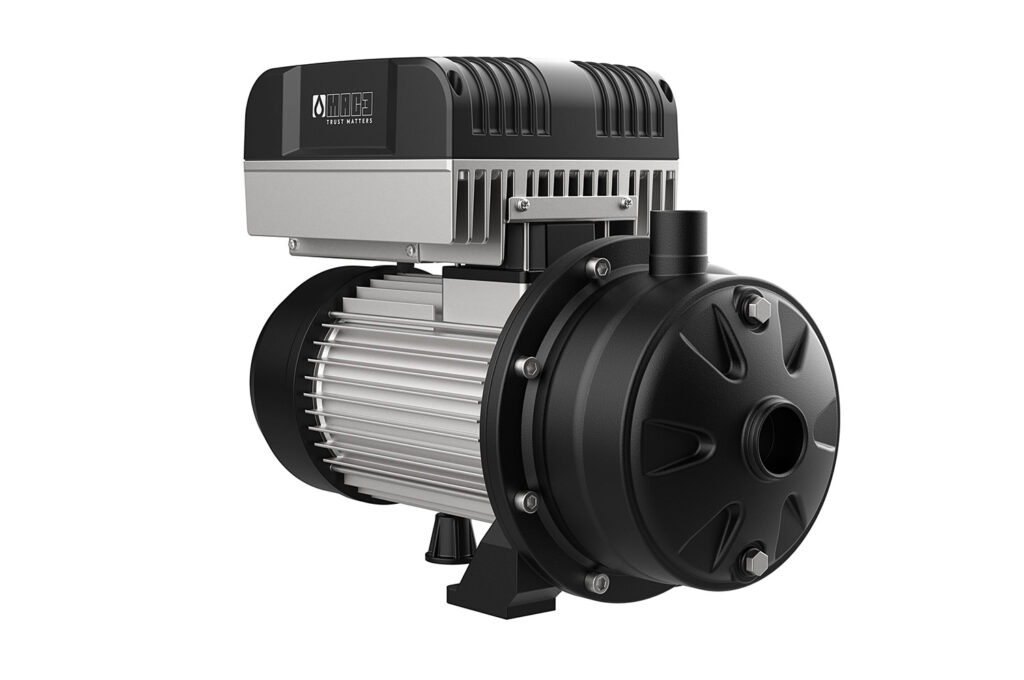

Range of air-cooled, self-ventilated inverters (IP54), easily mountable on pump terminal blocks or wall.
Designed for
HCeasyFit
Range of air-cooled, self-ventilated inverters (IP54), easily mountable on pump terminal blocks or wall.
HC easyFiT automatically adjusts pump speed based on water demand, ensuring constant pressure even as flow rates vary. Equipped with advanced protections, it guarantees operational efficiency, reduces energy consumption, and extends pump lifespan.
Its direct installation on the terminal block enables the creation of compact pumping solutions, optimizing space and design. Fewer components translate to lower costs, logistical benefits, and streamlined sourcing. It can be mounted either directly on the terminal block or on a wall, without requiring additional kits, making it a flexible solution ideal for both new and existing systems.
Available in power ratings from 1.5 to 5.5 HP, both single-phase and three-phase, it can control up to eight pumps configured in master-slave or multi-master modes. The IP54, self-ventilated structure ensures reliability even in challenging environmental conditions. A multilingual LCD display and intuitive software simplify setup, requiring just three initial parameters. Optional WiFi connectivity allows remote control via PC or smartphone, facilitating monitoring and assistance.
Suitable for residential, commercial, and industrial applications, HC easyFiT combines innovation and practicality to ensure energy efficiency and constant pressure, delivering the perfect solution for every need, whether for new installations or system upgrades.
Designed for
Applications
HC easyFiT main applications include:
- Domestic, Commercial, and Industrial Water Supply:
Adjusting pump speed to ensure constant pressure and reduce energy consumption, improving efficiency in both new and existing systems. - Irrigation Systems:
Controlling pumps for the optimal distribution of water in gardens, parks, sports fields, and agricultural applications.
HC easyFiT enables effective pump management, optimizing energy consumption and extending pump lifespan. The solution ensures reliability and safety across a wide range of water supply and irrigation applications.
Features
Technical Specifications
| Mounting |
On pump terminal block and wall. |
| Protection degree |
IP54 |
| Cooling |
Built-in cooling fan |
| Operating temperature |
5÷40°C |
| Display |
LCD 2 lines 16 characters |
| P.Set Range |
0.3-25 bar |
| Protections |
Dry running, high/low supply voltage, short circuit, overcurrent, overtemperature, low pressure, pressure sensor failure, water hammer. |
| Versions and powers |
see catalog and price list |
| Dimensions and weights |
24,5×19,5×17(h) cm |
| Inputs and outputs |
Programmable outputs: 2 |
| WIFI |
optional, to be mounted in MAC3 |
| Electrical safety |
EN60335 |
| Electromagnetic Compatibility |
EN61000 |
If needed, request the manual via the contact form providing
the serial number of the product.
| User |
Installation Technician |
| Real-time control |
Quick configuration |
| Historical data |
Monitoring |
| Email alerts |
Email alerts |
