Mac5
for tough challenges.....
(DOUBLE-CHAMBER MODEL WITH BUILT-IN COUNTERWEIGHT. DESIGNED FOR CLEAR, WASTE, AND SEWAGE WATER IN BOTH TURBULENT AND POTENTIALLY EXPLOSIVE ENVIRONMENTS)

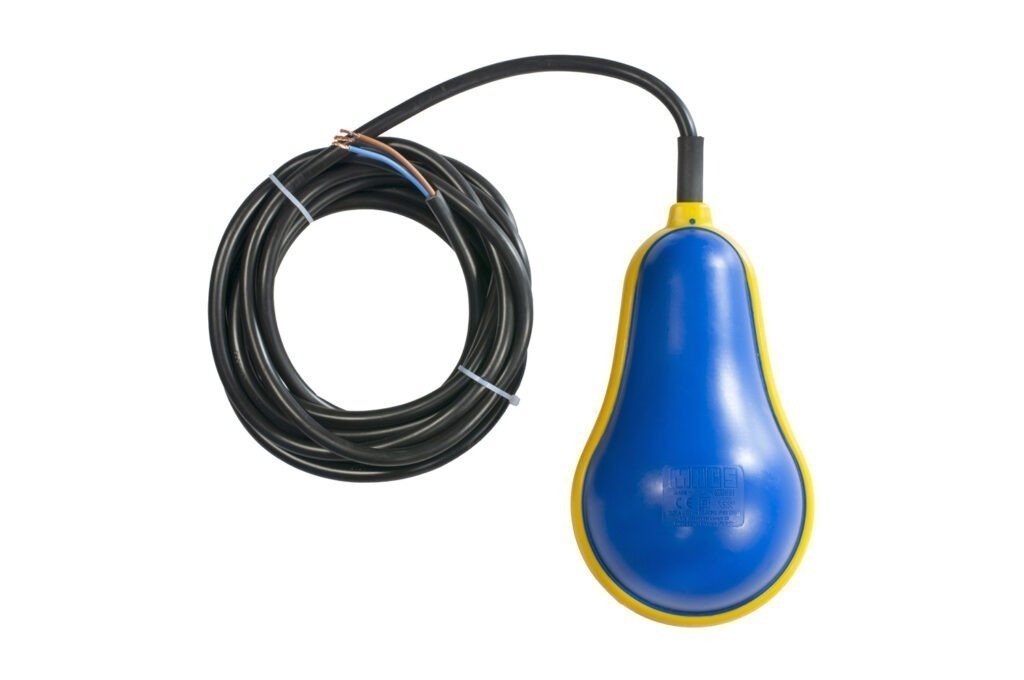

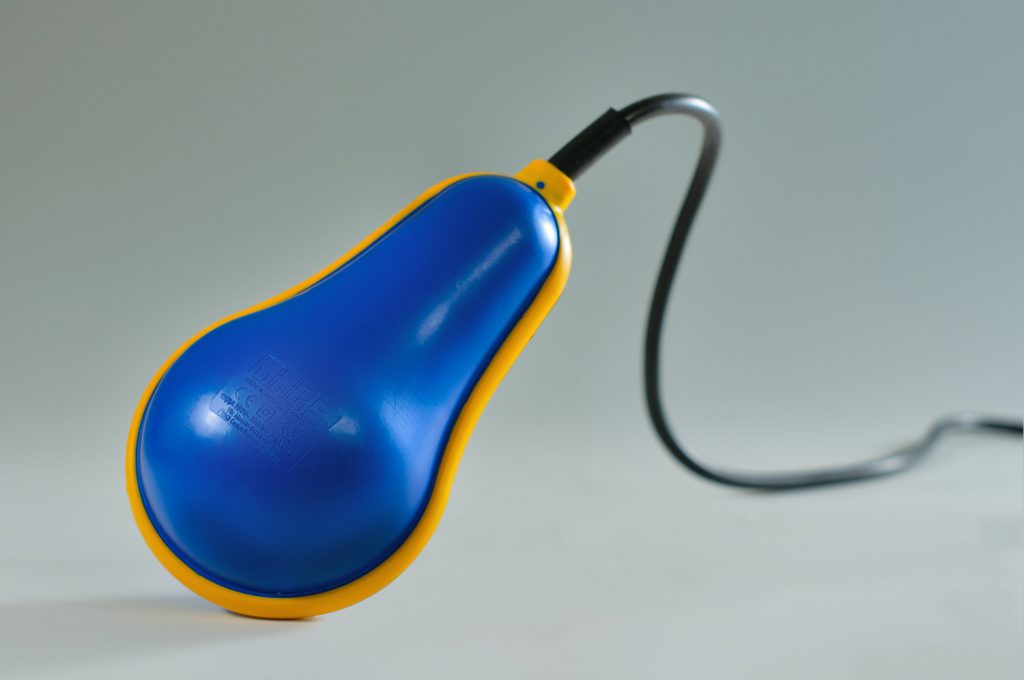

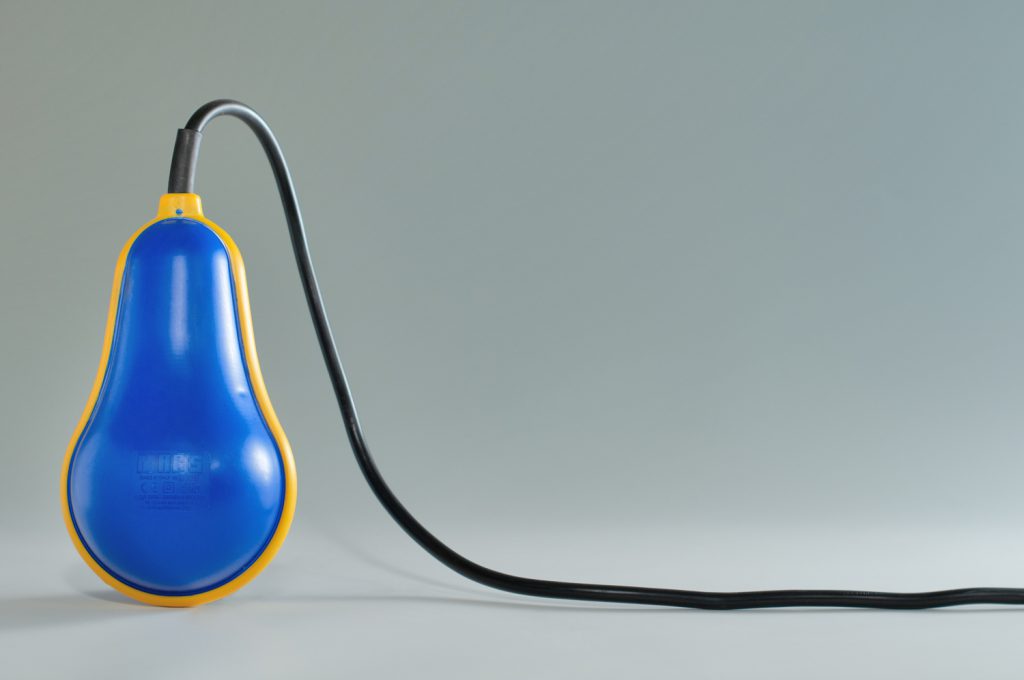

Mac5 is a massive tilt float switch featured by top : weight and dimensions, smooth shape along with a standard switching angle of ±45°, and an angle of ±10º upon request; all this ensures right performance in applications with turbulent waters and high levels of grease, including challenging water conditions, industrial environments with suspended conglomerate residues. The MAC5 model has a built-in counterweight to maintain optimal balance. Additionally, it is equipped with a double watertight chamber (IP68) to resist to impacts effectively.
Designed and made in Italy.
Designed for
Applications
- Wastewater lift stations
- Tank level control, water treatment systems
- High-level alarm switch
- Dry run protection for low-level detection
- ATEX certified version for application in potentially explosive environments
Features
Robust and secure. Mac5, the tilting float for wastewater with superior weight and dimensions, designed to be a solid guarantee in a multitude of challenging environments.
Features:
- Tilting float switch: Designed to work in turbulent waters and with suspended solids. The inversion/tilting allows for a reliable contact switch even in demanding environmental conditions.
- High buoyancy force: Essential because of the possible typical loads of the application.
- High cable seal degree and double body: To prevent harmful infiltrations.
- Integrated counterweight: To ensure the float’s stability in turbulent waters and with debris
- Impeccable seal over time: Thanks to the innovative overmolding technique developed in Mac3.
Technical Specifications
| Micro-switch type |
10(3)A 250 V~ |
| Max fluid temperature |
+50ºC |
| Dimensions |
Ø122,5 mm , H222 mm, Volume 1000 cm3 |
| Weight (without cable) |
1100g (without cable) |
| Switching angle |
±45° e ±10º (on request) |
| Insulation grade |
IP68 |
| Nominal pressure |
2 bar |
| Cable lengths |
5 / 10 / 20m |
| Body material |
Non-toxic Polypropylene (PP) |
| Standard available cables |
|
Metallic bracket for fixing up to 4 floats like the Mac5 or E-fly.
| Weight |
gr. 500 |
| Dimensions |
mm 37,4 x 9 x 7 |
| Material |
Galvanized steel |
Upon request, the regulators may be equipped with a piggy back plug. The piggy back plug is connected to the power supply and receives the pump’s plug so that he pump power is controlled by the float.
| Electrical Data |
16A 250Vac |
| Weight |
68g |
| Maximum Dimensions with Grommet |
90x72x50 mm |
